M6 Galvanised DIN 582 Eye Nut with 90kg WLL / SWL

M6 Galvanised DIN 582 Eye Nut with 90kg WLL / SWL

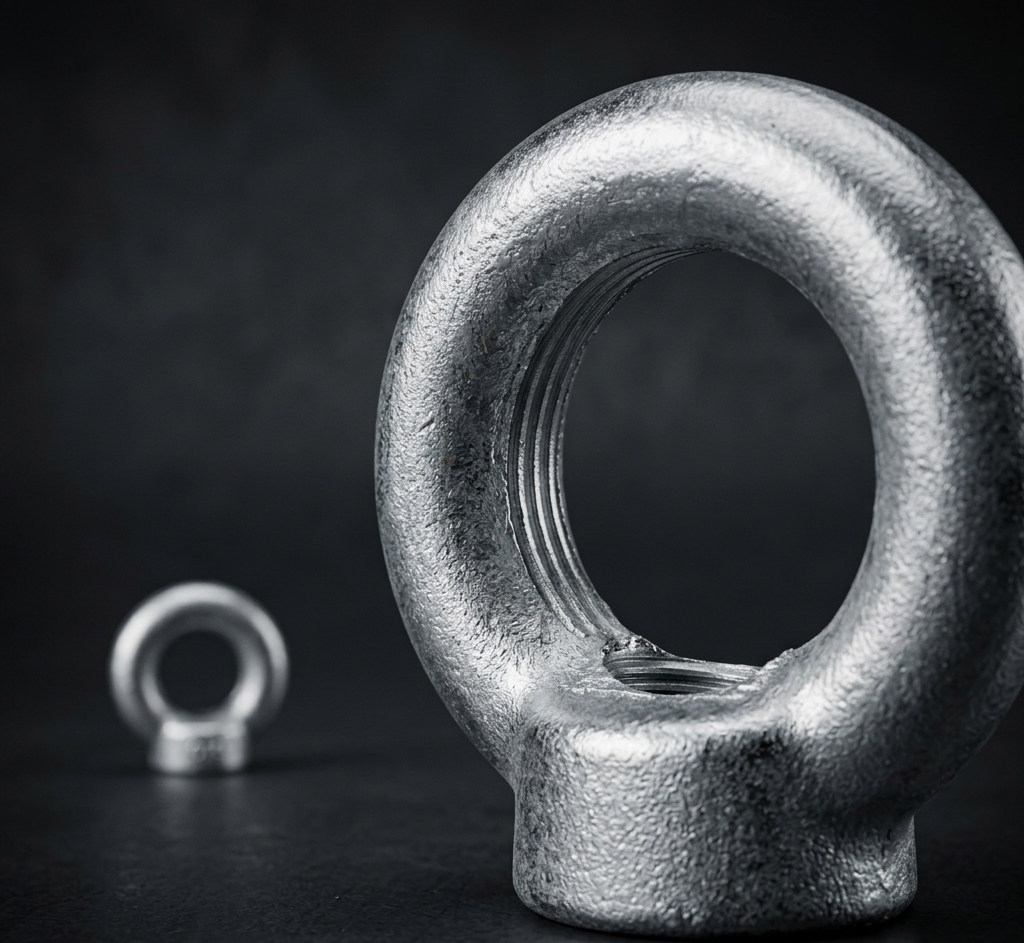

M6 galvanised DIN 582 eye nut is designed to create a secure threaded lifting, fixing, or attachment point on a compatible M6 bolt, threaded rod, stud, or machinery fixing point.

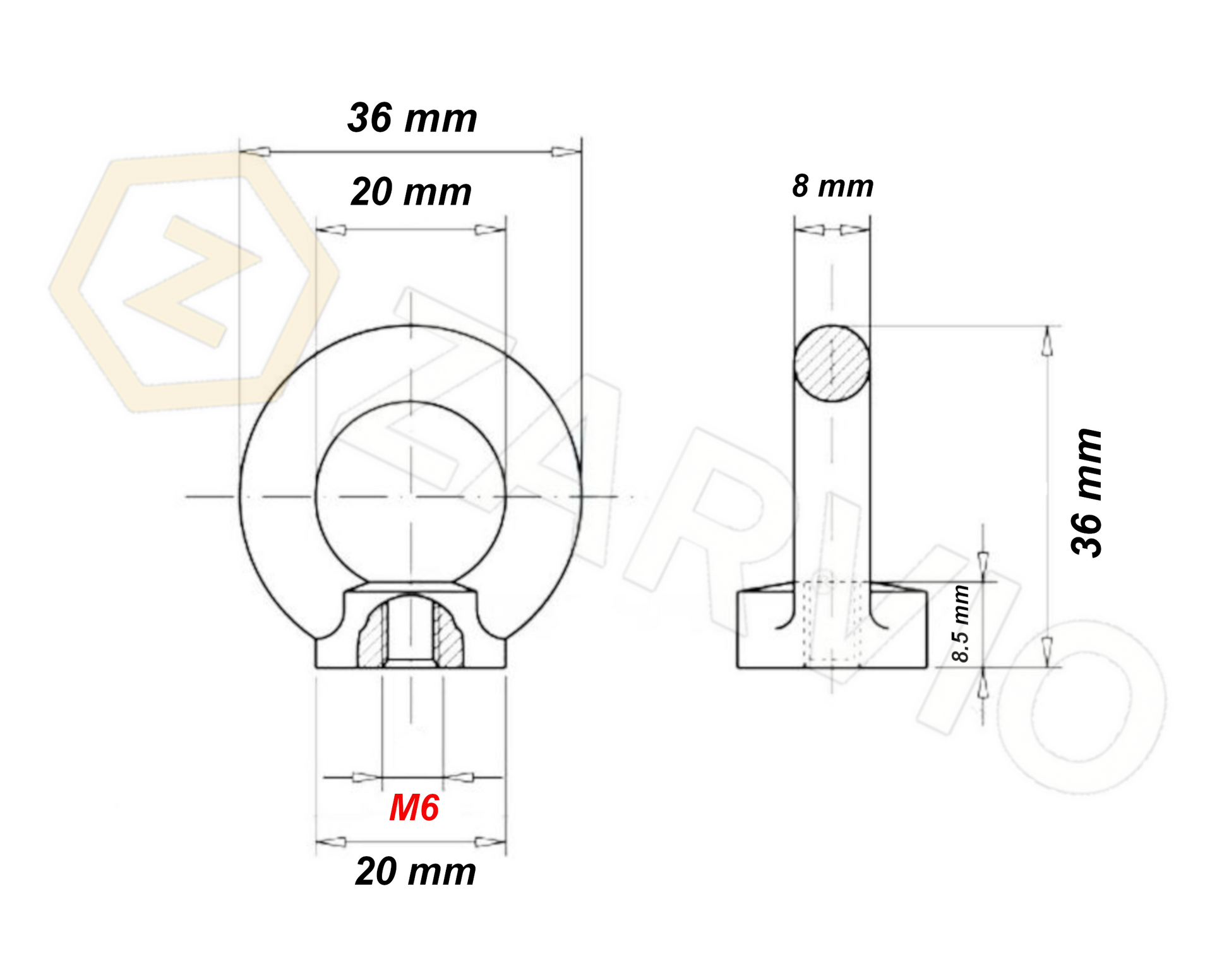

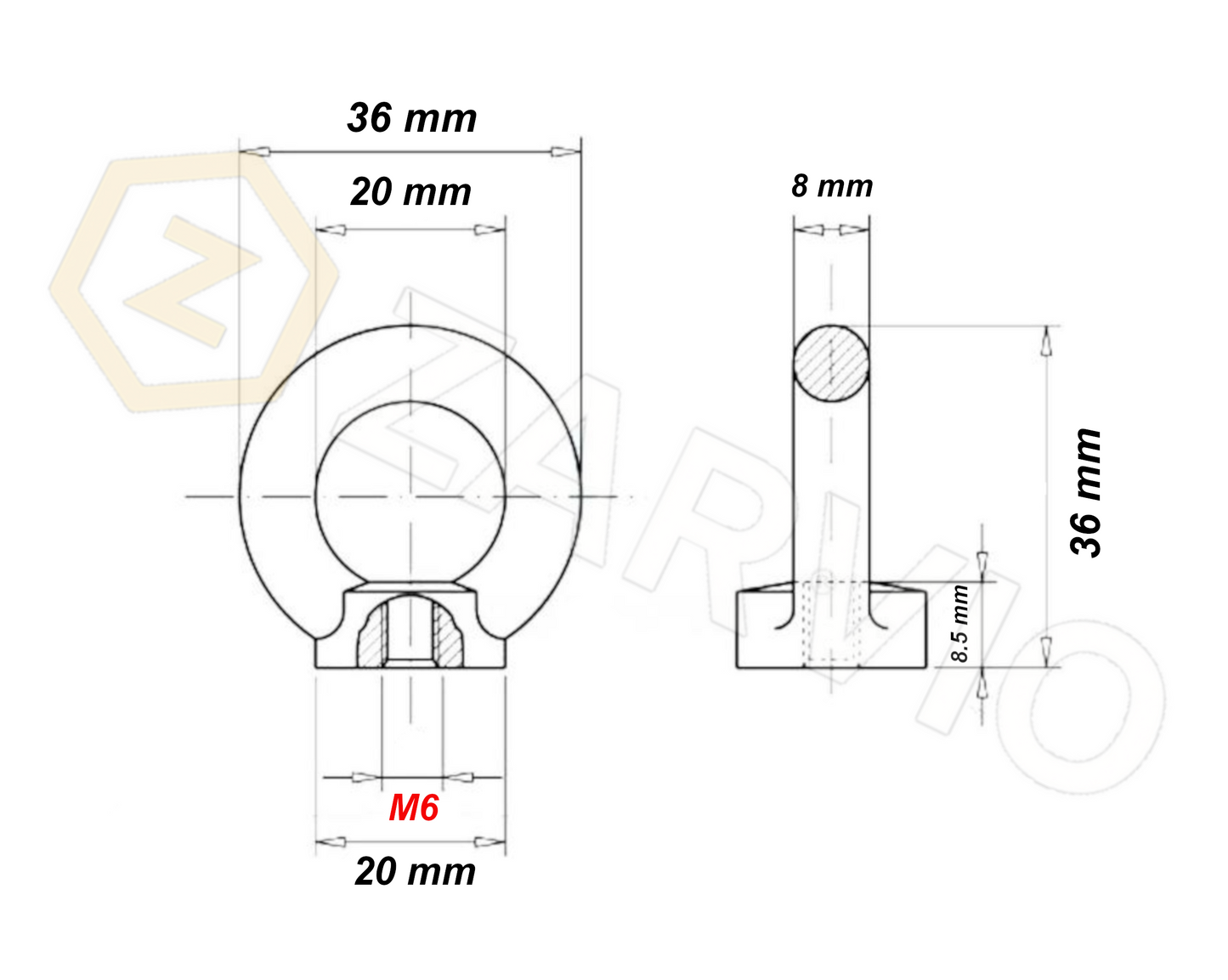

Manufactured in line with DIN 582, this eye nut features an internal M6 thread and circular lifting eye for connecting hooks, shackles, wire rope, chain, or other compatible fittings. The galvanised zinc coating provides improved corrosion resistance compared to plain steel.

This M6 size is suitable for light-duty applications, small machinery attachment points, trailers, containers, workshop use, and general fixing tasks where the correct rated component is required.

Key Features

• Metric size: M6
• Standard: DIN 582
• Thread pitch: 1mm
• Working Load Limit / Safe Working Load: 90kg
• Galvanised steel construction
• Internal thread with circular lifting eye

Common Applications

• Light lifting and attachment points
• Threaded rods, bolts, studs, and machinery points
• Workshop and maintenance use
• Wire rope, chain, hook, and shackle connections

Important: Always check that the selected eye nut size, thread engagement, fixing method, and load direction are suitable for your application. Do not exceed the stated WLL / SWL.
