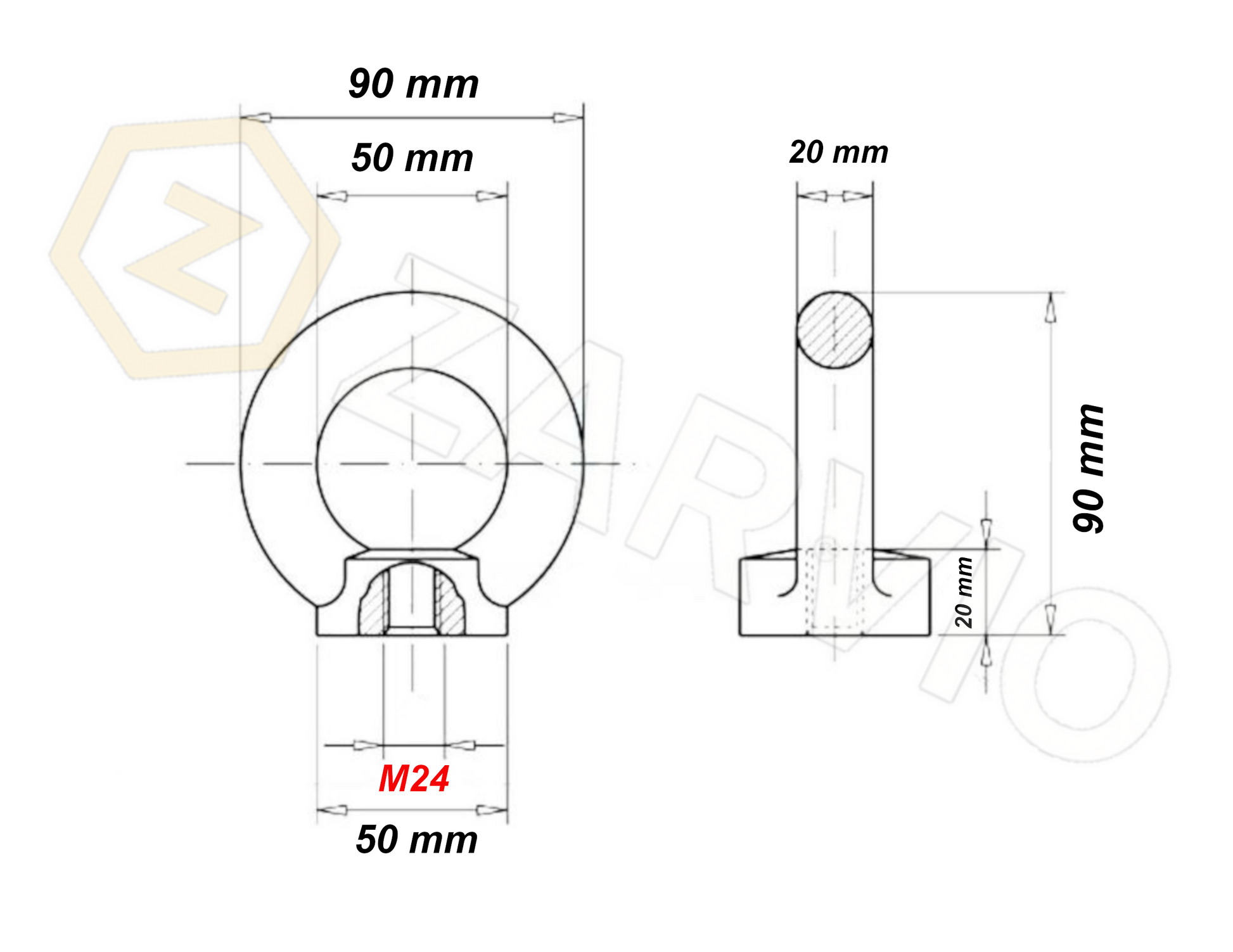

M24 Galvanised DIN 582 Eye Nut with 1800kg WLL / SWL

M24 Galvanised DIN 582 Eye Nut with 1800kg WLL / SWL

M24 galvanised DIN 582 eye nut is designed to create a very heavy-duty threaded lifting, fixing, or attachment point on a compatible M24 bolt, threaded rod, stud, or machinery fixing point.

Manufactured in line with DIN 582, this eye nut features an internal M24 thread and circular lifting eye for connecting hooks, shackles, wire rope, chain, or other compatible fittings. The galvanised zinc coating provides improved corrosion resistance compared to plain steel.

This M24 size is the largest rated option in this range, with a working load limit of 1800kg, making it suitable for heavy machinery attachment points, trailers, containers, workshop equipment, maintenance work, and secure fixing applications where the correct rated component is required.

Key Features

• Metric size: M24
• Standard: DIN 582
• Thread pitch: 3mm
• Working Load Limit / Safe Working Load: 1800kg
• Galvanised steel construction
• Internal thread with circular lifting eye

Common Applications

• Very heavy lifting and attachment points
• Threaded rods, bolts, studs, and machinery points
• Workshop equipment and maintenance use
• Wire rope, chain, hook, and shackle connections

Important: Always check that the selected eye nut size, thread engagement, fixing method, and load direction are suitable for your application. Do not exceed the stated WLL / SWL.
