M18 Galvanised DIN 580 Eye Bolt with 830kg WLL / SWL

M18 Galvanised DIN 580 Eye Bolt with 830kg WLL / SWL

M18 galvanised DIN 580 eye bolt is designed to create a heavy-duty threaded lifting, fixing, or attachment point where a rated eye bolt pattern is required.

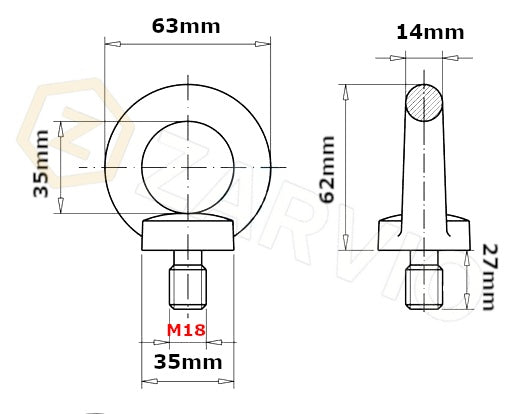

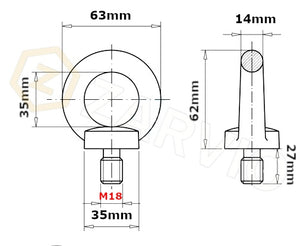

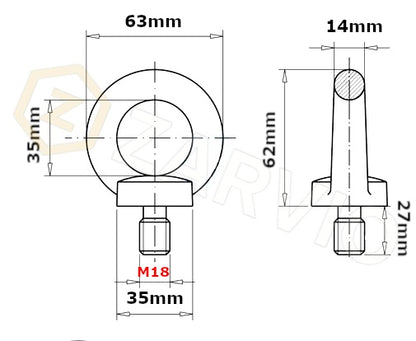

Manufactured in line with DIN 580, this eye bolt features an M18 threaded shaft and circular eye for connecting hooks, shackles, wire rope, chain, or other compatible fittings. The galvanised zinc coating provides improved corrosion resistance compared to plain steel.

This M18 size offers a higher working load than M16, making it suitable for heavier machinery attachment points, trailers, containers, workshop equipment, maintenance work, and secure fixing applications where the correct rated component is required.

Key Features

• Metric size: M18
• Standard: DIN 580
• Thread pitch: 2mm
• Working Load Limit / Safe Working Load: 830kg
• Galvanised steel construction
• Threaded shaft with circular lifting eye

Common Applications

• Heavy lifting and attachment points
• Machinery, trailers, and containers
• Workshop equipment and maintenance use
• Wire rope, chain, hook, and shackle connections

Important: Always check that the selected size, fixing method, thread engagement, and load direction are suitable for your application. Do not exceed the stated WLL / SWL.
