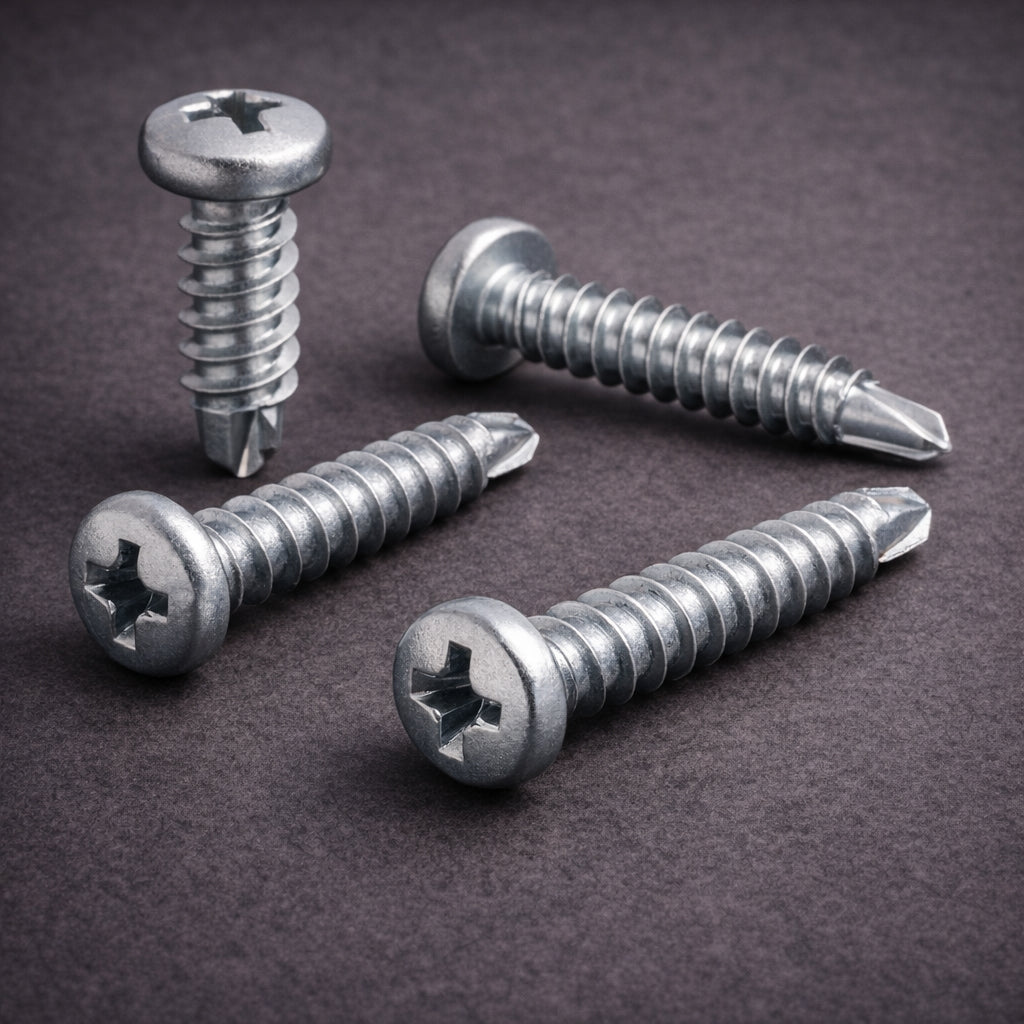

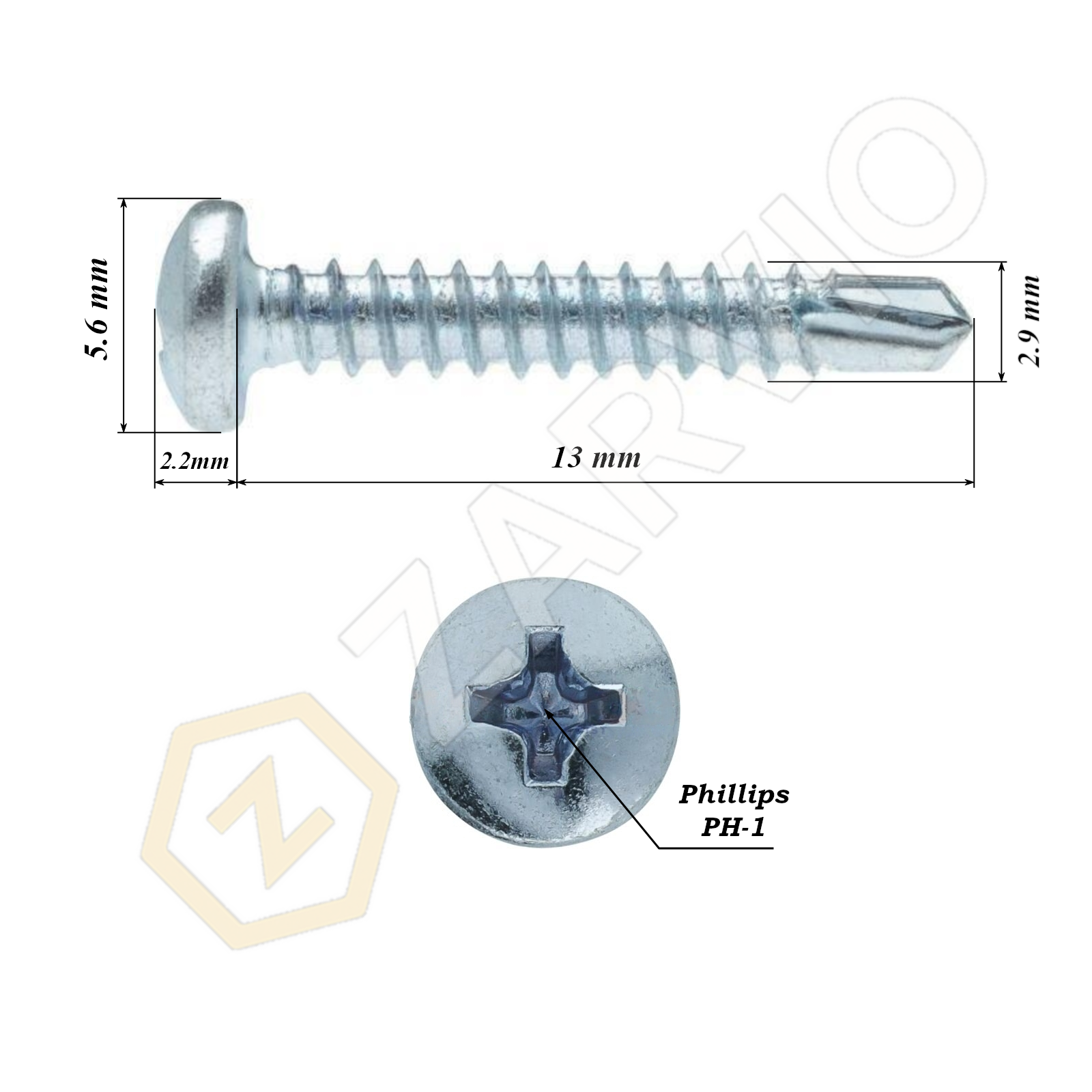

2.9mm x 13mm Pan Head Self-Drilling Screws (Zinc Plated)

ISO 15481 Pan Head Self‑Drilling Screws – Zinc Plated, PH Drive

Designed for rapid fastening in sheet metal and other thin materials, these ISO 15481 screws drill their own hole and secure a strong, flush connection. A cylindrical pan head spreads the load to minimise surface damage, while a cross-recessed PH drive offers reliable torque transfer.

Key Features & Benefits

• Self-drilling tip: These screws cut their own hole and tap into the material, eliminating the need for a pilot hole and speeding up assembly.
• Pan head design: A low, wide head distributes pressure evenly across the surface, reducing the risk of crushing thin material and providing a clean, professional appearance.
• Cross-recessed PH drive: Phillips (Type H) recess allows for secure bit engagement and efficient torque application.
• High-strength steel: Available in carbon or alloy steel with high hardness for dependable fastening in timber-to-metal or metal-to-metal connections.
• Zinc plating: White galvanised (Cr3+) finish protects against corrosion and oxidation, making these screws suitable for indoor and light outdoor use.
• Wide size range: Diameters from ST2.9 to ST6.3 and lengths typically from 9.5 mm to 50 mm cater to various fastening needs.
• Standards compliance: Manufactured to ISO 15481 (equivalent to DIN 7504N), ensuring consistent dimensions and performance.

Applications

• Ideal for professionals in construction, automotive, HVAC, and metalworking who need quick, reliable fastening in thin sheet metal, aluminium profiles, cladding, ducting, or timber-to-metal assemblies.
• Use with a washer if mounting metal to wood to reduce vibration and prevent damage.

Specifications

• Drive type: Phillips (PH), cross recess type H.
• Thread type: Self-drilling, tapping screw thread.
• Head style: Pan (cylindrical) head.
• Material: Hardened carbon/alloy steel (stainless steel options may be available).
• Coating: White zinc plating.
• Size range: 2.9mm – 6.3mm diameters.
• Standard: ISO 15481 / DIN 7504N.

These ISO 15481 self-drilling pan head screws offer fast installation and durable holding power, making them an excellent choice for sheet-metal projects where efficiency, reliability, and corrosion resistance are important.
