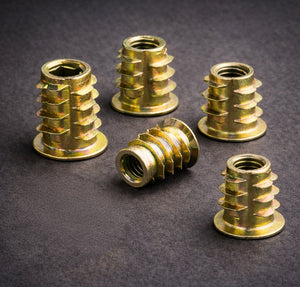

M5 x 20mm Hex Socket Flanged Wood Insert Nut – Type E – Yellow Zinc Plated

Hex Socket Threaded Insert with Flange & Tapered Thread (M4–M10)

A high-quality screw-in insert featuring a hexagonal socket, integral flange and tapered external thread for reliable, precise connections. The hex socket allows easy installation with an Allen key, while the tapered external thread cuts cleanly into pre-drilled holes and provides a secure hold. The flange sits flush against the surface, distributing load evenly and adding stability to the connection. Made from durable zinc alloy, these inserts resist corrosion and wear, making them suitable for a wide range of applications.

Key Features

• Hex socket drive: For precise insertion and removal with a standard Allen key.
• Integral flange: Distributes load and increases connection stability.
• Tapered external thread: Ensures solid engagement and easy starting during installation.
• Zinc-alloy construction: Provides strength and corrosion resistance.
• Available sizes M4–M10: To suit various panel thicknesses and bolt diameters.

Typical Uses

• Creating strong, reusable threaded anchor points in wood, composite and soft metals.
• Furniture assembly, joinery and cabinetry.
• Mechanical and construction projects requiring robust threaded inserts.
• Applications where a flush, professional finish and reliable holding power are essential.

Recommended Hole Sizes and Allen Key Sizes

• M4: Recommended hole size: 5.6mm - 6mm, Allen Key Size: 4 mm

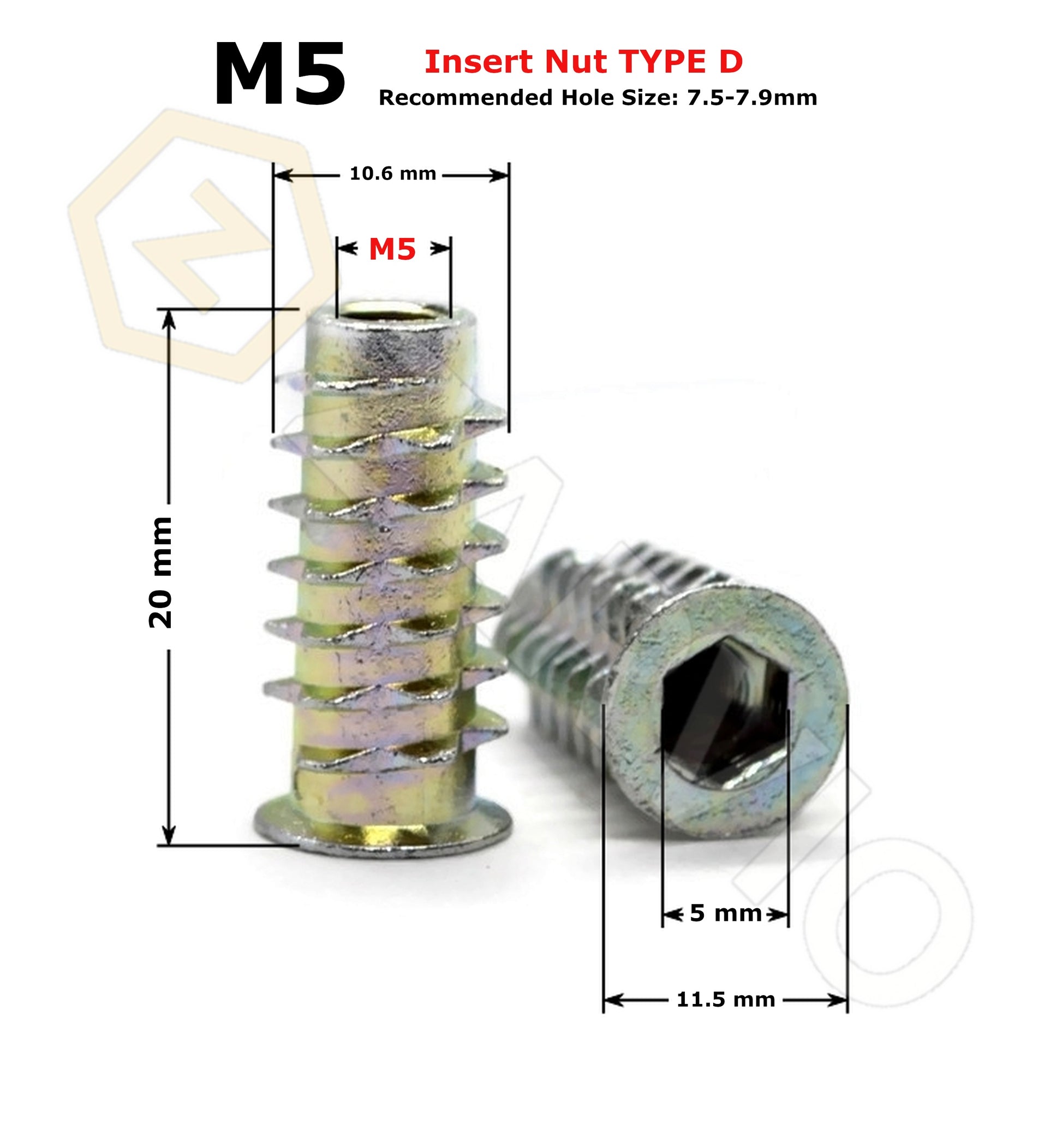

• M5: Recommended hole size: 7.5mm - 8.7mm, Allen Key Size: 5 mm
• M6: Recommended hole size: 8.7mm - 9.5mm, Allen Key Size: 6 mm
• M8: Recommended hole size: 11.1mm - 12.7mm, Allen Key Size: 8 mm
• M10: Recommended hole size: 12.7mm - 13.1mm, Allen Key Size: 10 mm
