M12 Nylon Insert Lock Nuts High Profile (DIN 982)

High-pattern nylon lock nuts with increased height and a captive insert for secure, vibration resistant fastening and extra thread engagement.

Key Benefits & Features

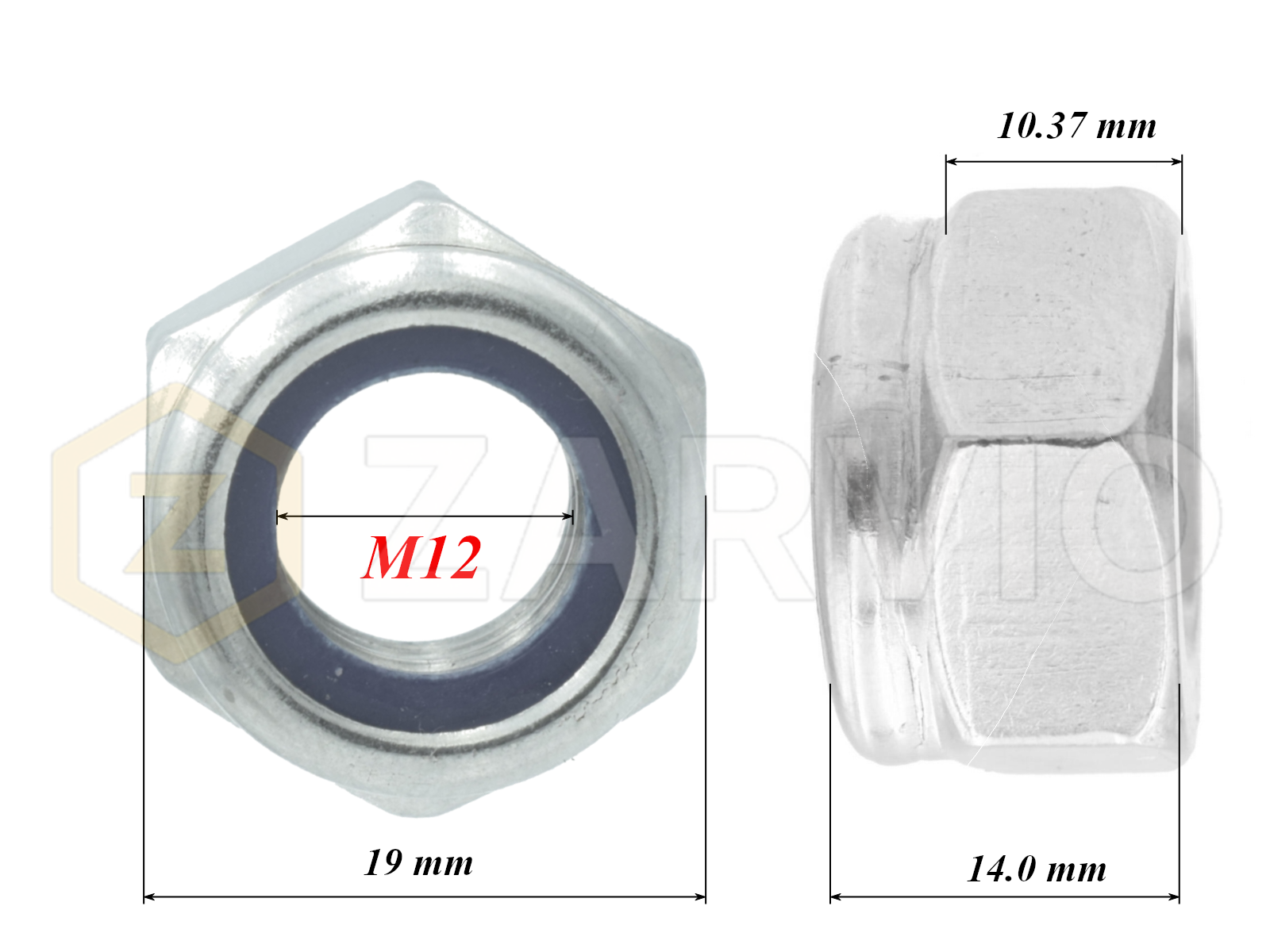

• Heavy pattern high profile: DIN 982 nuts have the same across flat size as regular nylon nuts but an increased overall height (typically 1.5–2 mm taller) for improved wrenching and thread engagement.
• Nylon insert lock: A permanent undersized nylon/polyamide ring at the top produces friction, creating a prevailing torque that resists loosening and seals out moisture and gases.
• High type nylon insert compresses without damaging threads: The insert deforms around the mating threads to lock the nut in place and then recovers; it does not cut the threads and can be reused a limited number of times.
• Less exposed thread: The taller profile leaves less external thread exposed, improving safety and appearance.
• Standards: Manufactured to DIN 982 (high type) and equivalent to ISO 7040.
• Cautions: Nylon inserts have chemical and temperature limitations; friction may cause galling when paired with stainless bolts. Reuse is limited and nuts must be installed with the nylon insert facing outward. Avoid power tools to prevent damage.

Use Cases

• Securing machinery and equipment subject to vibration, such as engines, pumps and compressors
• Automotive and aerospace assemblies where prevailing torque and thread engagement are critical
• Structural steel connections and industrial equipment requiring high strength lock nuts
• DIY projects and household repair jobs needing reliable anti vibration fasteners

Compatibility / Fittings

• Match the nut’s diameter and thread pitch to your bolt or stud; pair with bolts of equal or lower strength grade.
• Use flat or spring washers under the nut to distribute load and resist loosening.
• Not suitable for high temperature or harsh chemical environments due to nylon insert limitations.

Installation & Tips

• Ensure the nylon insert faces outward; install by hand to engage the first few threads.
• Tighten using standard spanners or sockets—do not use power tools, which may damage the nylon insert or seize the nut.
• Avoid overtightening; use a torque wrench to tighten to the bolt’s specified torque.
• For stainless nut/bolt combinations, apply an anti seize compound to reduce friction and prevent galling.
• Reuse of nylon insert nuts is limited; inspect the insert for wear and replace if necessary.
